Tracker Interactivity

Business Background

Configure the tracker widget interactivity actions to suit your business needs in a few clicks with no code.

Titan Solution

Titan Web lets you add a tracker widget with dynamic interactivity. You can configure how the widget must behave in different circumstances.

The interactivity includes options such as:

• Resetting the tracker widget
• Jumping to previous or next items
• Showing or hiding items

How to Video

Coming soon!

How to Guide

Note:

Prerequisite:

1. Configure the tracker widget.
2. Add unique text in the Tag field. This helps to identify the tracker on the Add Node/ Tracker Interactivity screen.

In this example, the tracker interactivity is added to a button. You can add any conditional logic.

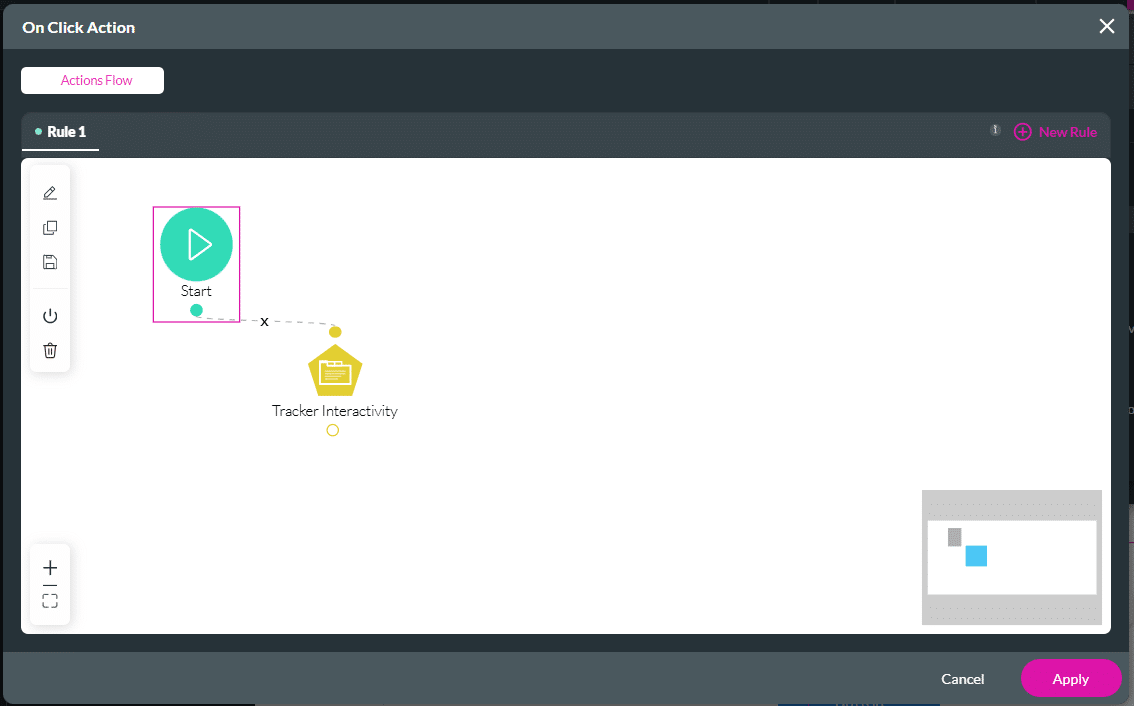

1. Click the On Click Action icon. The On Click Action screen opens.

2. Click the + icon. The Add Node screen opens.

3. Under Element Interactivity, select Tracker Interactivity and click the Next button. The Add Node/Tracker Interactivity screen opens.

4. Use the Tracker element drop-down list to select the tracker.
   • The names you added to the Metadata tag field(s) are listed here.
5. Use the radio buttons to select an interactivity action. The options are as follows:

• Reset
  • Select the Reset radio button to reset the tracker to the first group.
• Prev Step
  • Select the Prev Step radio button to jump to the previous item.
• Next Step
  • Select the Next Step radio button to jump to the next item.
• Go to Step
  • Select the Go to Step radio button to add a specific item. The tracker will jump to the selected item when the user clicks the interactivity button.
  • The Go to Step option is added.
  • Use the drop-down list to select one of the following:
    • Static: Select the Item Value that you configured on the Configure Tracker Options screen.
    • Field: Select the field from the drop-down list.

• Finish
  • Select the Finish radio button to jump to the end of the widget. All the groups and items are marked as finished.
• Show and Hide
  • Select the Show or Hide radio button.
  • The Item option is added.
  • Use the drop-down lists to select the Item Value that you configured on the Configure Tracker Options screen.

• Rename Group
  • Select the Rename Group radio button. This option is useful when the user has to fill in details that are unknown beforehand a certain number of times.
  • The Rename Group option is added.
  • Use the drop-down list to select the group or item that will be renamed.
  • Select one of the following:
    • Static: Type the new group or item name in the field.
    • Field: Use the drop-down list to select the field. This can be a variable or text input.

6. Click the Next button.
7. If necessary, add a tag and click the Insert button. The Tracker Interactivity is added to the screen.
8. Click the Apply button.

9. Save and Preview the project.
